twin screw extruder for floating fish feed pellet machine

  • 1 - 1 Sets
    $12,000.00
  • 2 - 2 Sets
    $10,000.00
  • >=3 Sets
    $8,000.00
Model Number:
DSE65,DSE70,DSE75,DSE85,DSE90
Power:
22kw
Samples:
$10,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Farms, Retail
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Showroom Location:
none
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Ding run
Type:
Feed Pellet Machine, Twin Screw Extruder
Voltage:
380V 50HZ or customized
Dimension(L*W*H):
2200*1000*1500mm
Weight:
1500 kg
Certification:
CE ISO SGS BV
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor
Product name:
twin screw extruder for floating fish feed machine
Raw material:
wheat flour,corn/rice powder,meat, fish meal
Apply:
pet ,dog ,fish ,cat
Motor brand:
Siemens
Inverter:
Delta Simens ABB
Material:
304 stainless steel
Function:
Extrusion
whatsapp:
+8615020006735
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
For twin screw extruder for floating fish feed
1. Inside package is plastic film, outside is wooden or plywood case
(based on the customers' need for Corn puff corn chips snack food production machine).
2. Only plastic film nude packing with wooden pallet.
3. We can supply fumigation package and certificate.
4. Shipping, train, express or upon clients' demands.
Port
qingdao port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 10 To be negotiated
Video Description
Related Products
Single screw extruder
US$2000-2500
twin screw extruder
US$8000-14000
Product Description

Most popular floating fish feed pellet machine

1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Dingrun provide basic fish food formula according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free of charge.
6). Packing machine could be supplied to work with the fish feed production line (depending on your require)

                                              Technical parameter for fish feed extruder

Model
Installed Power
(kw)
Power Consumption (kw)
Capacity
(kg/h)
Dimension
(m)
DSE65
74
52
120-180
17*1.2*2.2
DSE70
95
70
200-300
20*1.5*2.2
DSE75
110
82
250-400
26*1.5*2.2
DSE85
139
104
400-800
28*3.5*4.3
DSE90
132
75
800-1200
28*3.5*4.3
DSE95
165
90
1500-2000
35*3.5*4.3
DSE120
469
380
2000-2500
45*20*22
DSE135
712
570
3000-3500
50*20*25

Raw material:

Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.

Final product:

fish feed pellet /color customized/floating and sinking type/length customized
diameter from 0.2mm to 20mm

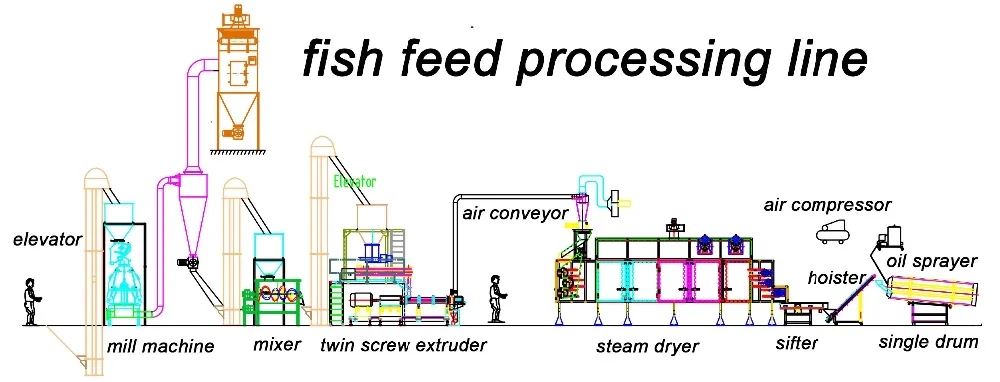

Equipment list in the fish feed production line:

mixer→screw conveyor→twin screw extruder→air conveyor→dryer→hoister→flavoring drum and oil sprayer→cooling machine→packing machine

1)mixer of fish feed machine floating fish feed pellet machine

Name
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel

2)extruder of fish feed machine floating fish feed pellet machine

Name
Usage
To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould
Model
DSE65, 70, 75, 90, 95, 120, 135
Motor
22kw, 30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel

3)oven of fish feed machine floating fish feed pellet machine

Name
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Model
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel

4)flavoring of fish feed machine floating fish feed pellet machine

Name
Usage
To mix the oil and flavors on the surface of the fish feed
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel

5)packaging of fish feed machine floating fish feed pellet machine

Name
Usage
To pack the fish feed with required weight
Type
Automatic
Flowing Process
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material
stainless steel, carbon steel
Our advantages
Our Service

1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
    how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
   how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.

Our Company
FAQ

Q: Are you a trade company or a manufacturer?
A: we are a manufacturer, welcome to visit our factory and check the machines.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q:do you supply any formula to buyer?
A: yes, we supply formulas to buyer.

Packing & Delivery

 Packing and delivery

 •  Inside package is plastic film, outside is wooden or plywood case(based on the customers’

     need).

 •  Only plastic film nude packing with wooden pallet.

 •  We can supply fumigation package and certificate.

 •  Shipping, train, express or upon clients' demands.
